IRIS COB ALL-IN-ONE

IRIS COB ALL-IN-ONE
108”/135”/163”/216”

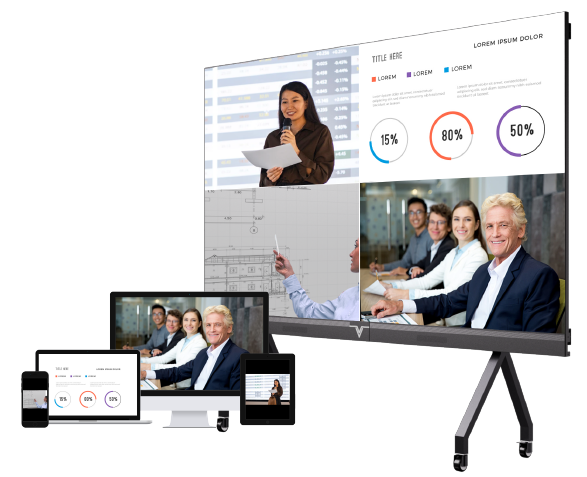

Screen Mirroring

Interactive Meeting

Touch Control

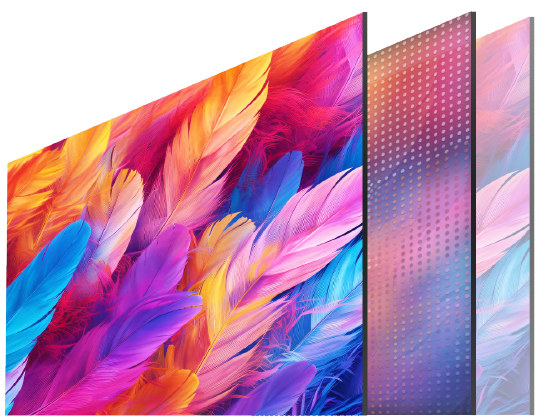

COB Panel

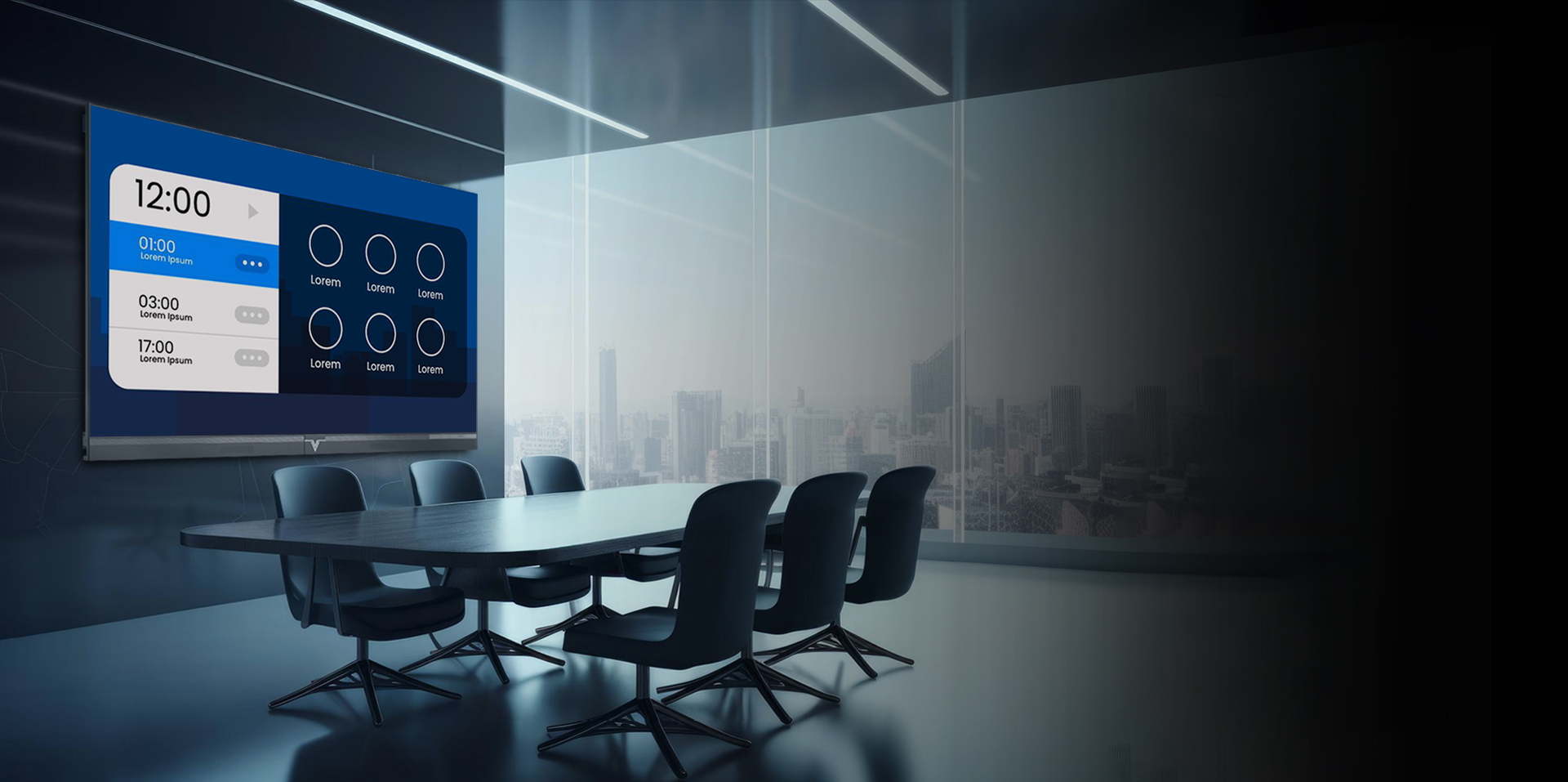

UHD large size, immersive conference experience

Available in various size options: 108”, 135”, 163”, 216”

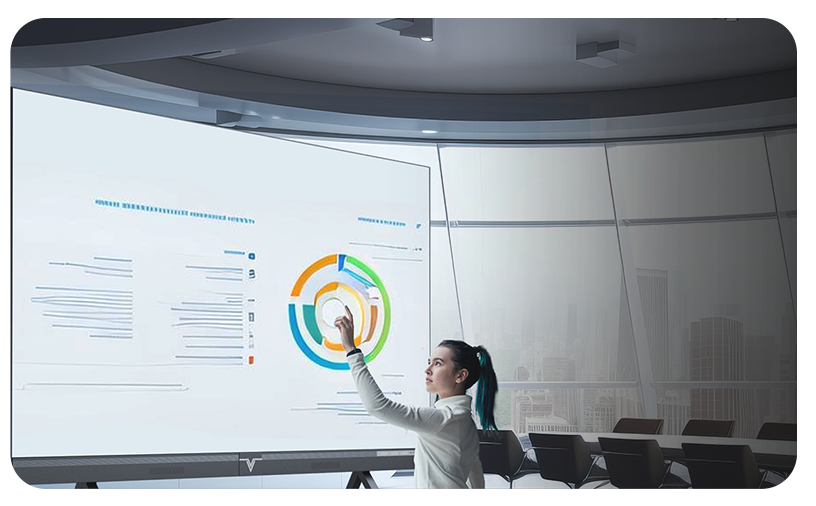

High-precision touch control, inspiration at your fingertips

AvaSupports touch control (compatible with dual systems) using highly precise infrared touch technology. Touch accuracy of ±2mm ensures flexible and accurate interactive operations, enabling natural and smooth writing for more convenient and efficient meetings.

All-in-one design, one display meets all needs

Built-in Android 11.0 system

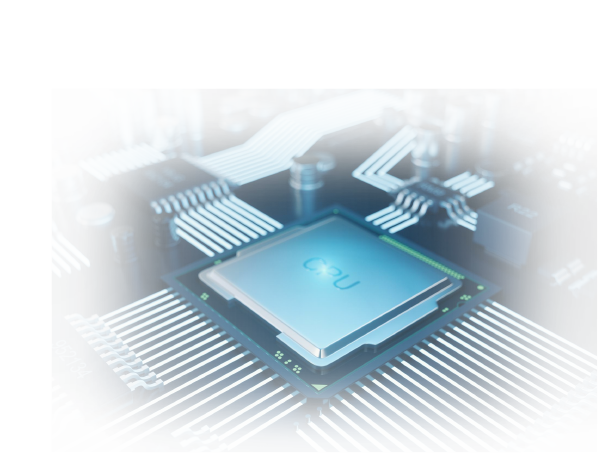

Octa-core processor
Equipped with various input and output ports
Dual-channel surround sound
External cameras, microphones and other devices can be connected

Dual operating system (optional)
Windows/Android free switch

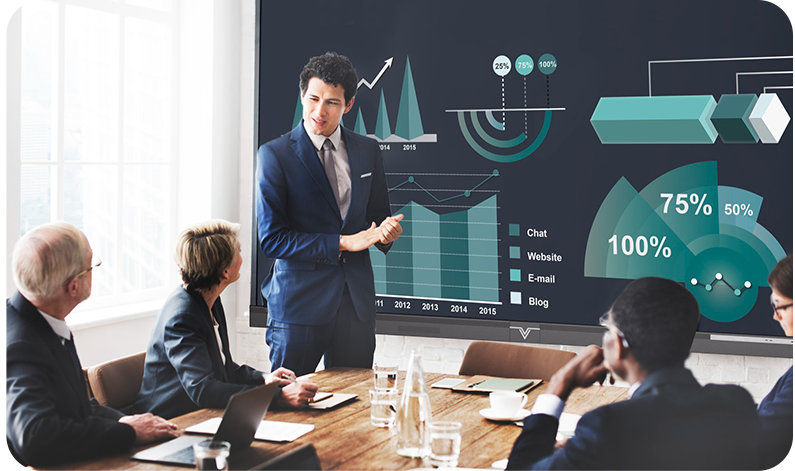

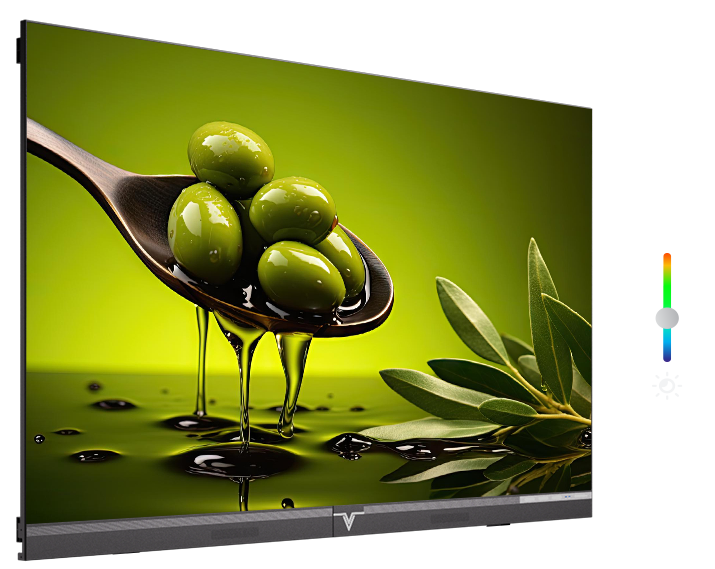

Multiple display modes, adaptive for all scenarios

Tailored for different meeting environments, offering Standard, Soft, Cinema, and Video modes for optimal display in any setting.

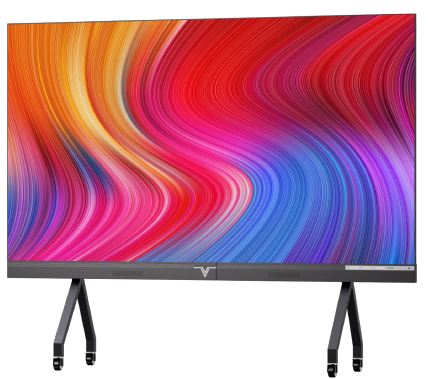

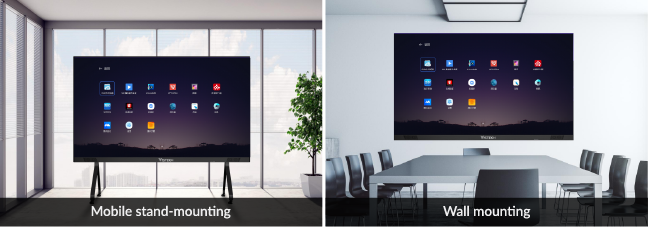

Flexible installation, easy maintenance

Support wall mounting and mobile stand-mounting.
Full front maintenance design allows for convenient installation and service.

Specifications

IRIS COB ALL-IN-ONE

S108COBVB-FSN

SR108COBVB-FSN

S135COBVB-FSN

SR135COBVB-FSN

S163COBVB-FSN

SR163COBVB-FSN

S216COBVB-FSN

Model
Display Size
Resolution
Aspect Ratio
Touch control
Overal Dimensions (W x H x D mm)
Actual Screen Dimensions (W x H x D mm)
Installation Method
Refresh Rate(Hz)
Brightness(nits)
Gray Scale(Bit)
Contrast Ratio
Viewing Angle(H./V.)
Maintenance Method
Operating System
Working Voltage
Power Consumption Max(W)
Power Consumption AVG(W)
Storage Temp(°C)
Operating Temp(°C)
Storage Humidity(%RH)
Humidity Range(%RH)

S108COBVB-FSN
108"
1920*1080
16:9
No
2410 x 1480 x 31
Bottom Thickness 47mm
2400 x 1350mm
Mobile Stand/Wall Mounting
3840
600
22
1000000:1
160°/160°
Front
Android 11.0，4+32G
AC:100V~240V, 50/60Hz
1200
400
-20 ~ 60
-10 ~ 50
10 ~ 90
10 ~ 90

SR108COBVB-FSN
108"
1920*1080
16:9
Infrared touch
2423 x 1487 x 45
Bottom Thickness 47mm
2400 x 1350mm
Mobile Stand/Wall Mounting
3840
600
22
1000000:1
160°/160°
Front
Android 11.0，4+32G
AC:100V~240V, 50/60Hz
1200
400
-20 ~ 60
-10 ~ 50
10 ~ 90
10 ~ 90

S135COBVB-FSN
135”
1920*1080
16:9
No
3010 x 1817.5 x 31
Bottom Thickness 47mm
3000 x 1687.5mm
Mobile Stand/Wall Mounting
3840
600
22
1000000:1
160°/160°
Front
Android 11.0，4+32G
AC:100V~240V, 50/60Hz
1850
620
-20 ~ 60
-10 ~ 50
10 ~ 90
10 ~ 90

SR135COBVB-FSN
135”
1920*1080
16:9
Infrared touch
3023 x 1824 x 45
Bottom Thickness 47mm
3000 x 1687.5mm
Mobile Stand/Wall Mounting
3840
600
22
1000000:1
160°/160°
Front
Android 11.0，4+32G
AC:100V~240V, 50/60Hz
1850
620
-20 ~ 60
-10 ~ 50
10 ~ 90
10 ~ 90

S163COBVB-FSN
163”
1920*1080
16:9
No
3610 x 2155 x 31
Bottom Thickness 47mm
3600 x 2025mm
Mobile Stand/Wall Mounting
3840
600
22
1000000:1
160°/160°
Front
Android 11.0，4+32G
AC:100V~240V, 50/60Hz
2450
820
-20 ~ 60
-10 ~ 50
10 ~ 90
10 ~ 90

SR163COBVB-FSN
163”
1920*1080
16:9
Infrared touch
3623 x 2161 x 45
Bottom Thickness 47mm
3600 x 2025mm
Mobile Stand/Wall Mounting
3840
600
22
1000000:1
160°/160°
Front
Android 11.0，4+32G
AC:100V~240V, 50/60Hz
2450
820
-20 ~ 60
-10 ~ 50
10 ~ 90
10 ~ 90

S216COBVB-FSN
216”
3840*2160
16:9
No
4810 x 2830 x 31
Bottom Thickness 47mm
4800 x 2700mm
Wall Mounting
3840
600
22
1000000:1
160°/160°
Front
Android 11.0，4+32G
AC:100V~240V, 50/60Hz
4600
1550
-20 ~ 60
-10 ~ 50
10 ~ 90
10 ~ 90
