MS Series

Modular Formation

Customise the screen size and shape to fit your desired environment.

Easy Maintenance

Direct front access to critical components allows for quick, convenient maintenance.

Seamless Black Surface

Aesthetically complement any luxury space with a sleek, black surface and bezel-less look.

Energy saving & low consumption

High heat dissipation panel, low temperature rise, longer lifespan.

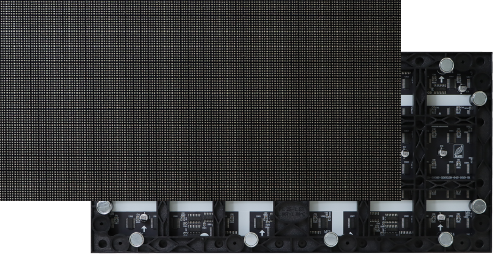

Using RGB 3in1 package and SMD technology.

Automatic manufacture archives high-quality and high-precision optical effects.

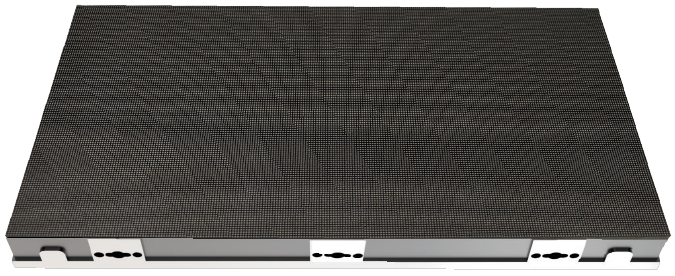

Cabinet with 4:3 aspect ratio design

Supporting point-to-point display.

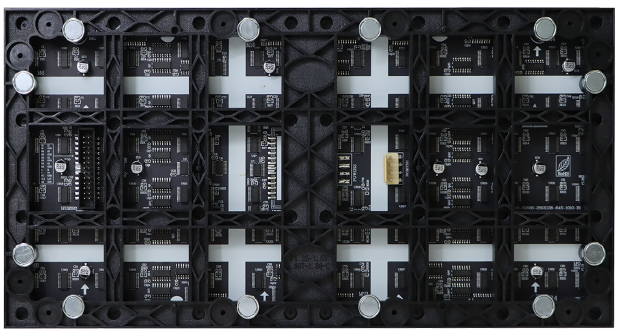

Internal routing design, clean and beautiful appearance

Efficiency heat dissipation panel processing technology, low temperature rising, longer working life.

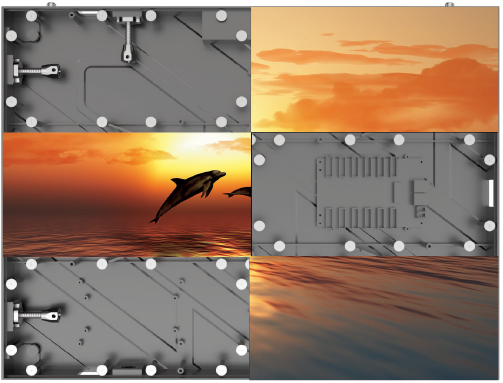

Seamless splicing and the flexibility to customize the screen size to suit your needs.

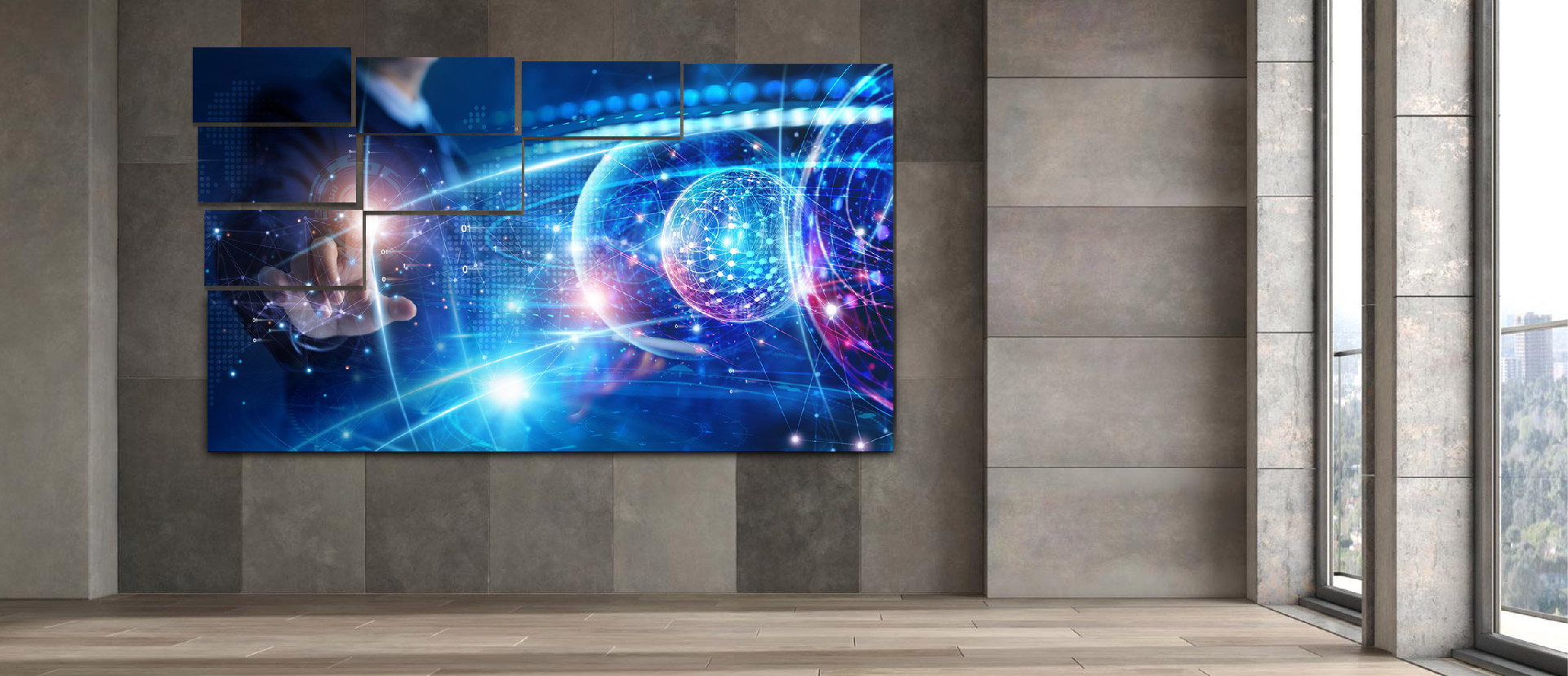

Suitable for a wide range of applications, including hotels, shopping malls, exhibition halls, window displays, large party events, and so on.

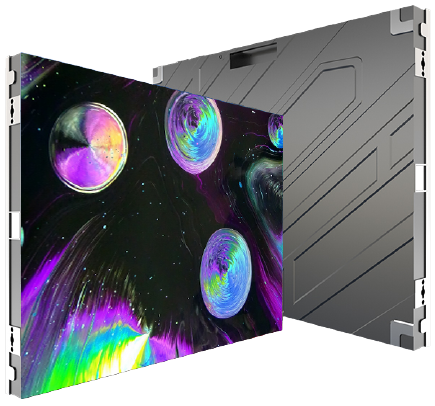

The ultimate precision, die-cast aluminum cabinet, perfect seamless.

Alignment groove + positioning pin design

Specifications

MS Series

UM3216-12VD

UM3216-15VD

UM3216-18VD

UM3216-20VD

UM3216-25VD

UM3216-30VD

UM3216-40VD

Model
Pixel Pitch (mm)
LED type
Module Resolution
Cabinet Resolution
Module Size(WxHxD)/(mm)
Cabinet Size(WxHxD)/(mm)
Cabinet Weight( Kg/cabinet)
Viewing Angle(H./V.)
Brightness(cd/m²)
Contrast Ratio
Color Temperature(K)
Refresh Rate(Hz)
Frame Frequency (Hz)
Power Consumption Max(W/m²)
Power Consumption Typical(W/m²)
Working Voltage
Lifetime (Hours)
Operating Temp (°C)
Operating Humidity (%RH)

UM3216-12VD
P1.25
SMD1010
256x128
512x384
320x160x17
640x480x62
7.2
160°/160°
600
4000: 1
3000K~9300K(adjustable)
60
≤3840
≤600
≤200
AC:100V~240V,50/60Hz
100,000
-10 ~ +50
10 ~ 80

UM3216-15VD
P1.5625
SMD1212
208x104
416x312
320x160x17
640x480x62
7.2
160°/160°
600
4000: 1
3000K~9300K(adjustable)
60
≤3840
≤600
≤200
AC:100V~240V,50/60Hz
100,000
-10 ~ +50
10 ~ 80

UM3216-18VD
P1.875
SMD1515
172x86
344x258
320x160x17
640x480x62
7.2
160°/160°
600
4000: 1
3000K~9300K(adjustable)
60
≤3840
≤600
≤200
AC:100V~240V,50/60Hz
100,000
-10 ~ +50
10 ~ 80

UM3216-20VD
P2.0
SMD1515
160x80
320x240
320x160x17
640x480x62
7.2
160°/160°
600
4000: 1
3000K~9300K(adjustable)
60
≤3840
≤600
≤200
AC:100V~240V,50/60Hz
100,000
-10 ~ +50
10 ~ 80

UM3216-25VD
P2.5
SMD2121
128x64
256x192
320x160x17
640x480x62
7.2
160°/160°
600
4000: 1
3000K~9300K(adjustable)
60
≤3840
≤600
≤200
AC:100V~240V,50/60Hz
100,000
-10 ~ +50
10 ~ 80

UM3216-30VD
P3.076
SMD2121
104x52
208x156
320x160x17
640x480x62
7.2
160°/160°
600
4000: 1
3000K~9300K(adjustable)
60
≤3840
≤600
≤200
AC:100V~240V,50/60Hz
100,000
-10 ~ +50
10 ~ 80

UM3216-40VD
P4.0
SMD2121/SMD1921
80x40
160x120
320x160x17
640x480x62
7.2
160°/160°
600/≤5000
4000: 1
3000K~9300K(adjustable)
60
≤3840
≤600/≤900（5000nit)
≤200/≤300(5000nit)
AC:100V~240V,50/60Hz
100,000
-10 ~ +50
10 ~ 80

Related Downloads

MS Series LED Module Solution

1.1MB

2023-04-17
