Sunlit Series

Sunlit Series

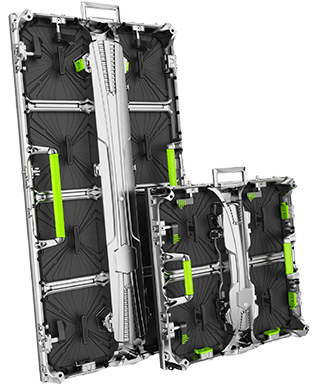

LED Rental Display

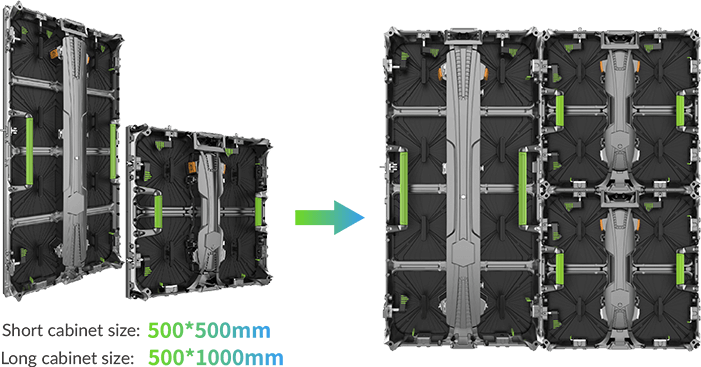

Two cabinets, any splicing

The Sunlit series is available in both long and short cabinet sizes. The two cabinets can not only be used individually but can also be combined, providing the flexibility to choose different cabinets for fitting according to the needs of the scenario.

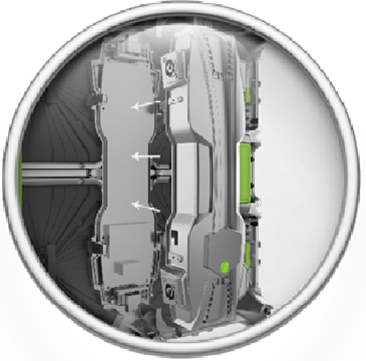

Hardwired power box design

The power box is hard-wired for quick disassembly and easy maintenance.

Corner protection design

The cabinet is protected from bumps by foldable corner protectors around the corners of the screen.

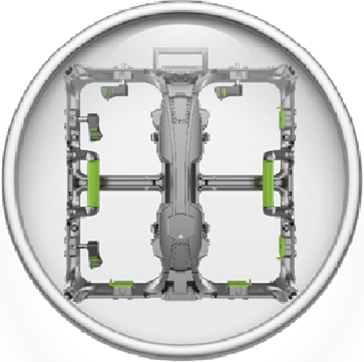

High quality die-cast aluminium

Adopting die-cast aluminium, the cabinet is robust and durable, effectively ensuring the flatness of the screen surface.

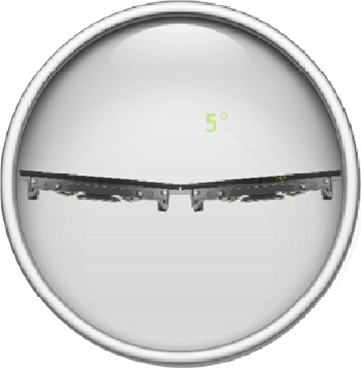

Customisable curved enclosure

The Sunlit series supports a customised enclosure design, allowing for easy internal and external arc splicing without the need for an internal arc lock.

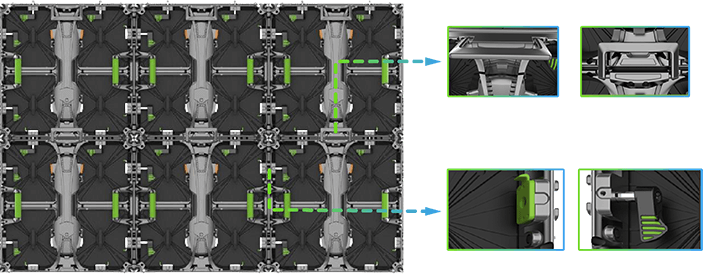

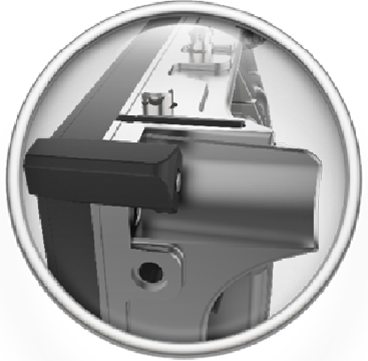

Customised structure for trouble-free assembly

Designed with handles, the cabinet is not only easy to install and dismantle by a single person but can also be used to fix the cabinet between the top and bottom, making it safer and more reliable.The Sunlit series cabinets are spliced with smart locks, which are easy to use, safe and firm, and can effectively avoid misoperation during installation.

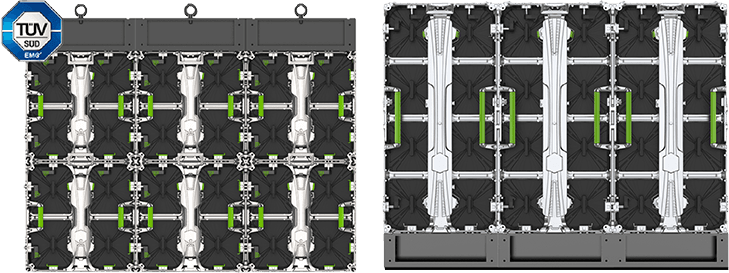

Various installation options

Left: Lifting(TUV certificated multi-function hanging bar)
Right: Floor stand mount

Multiple applications

Specifications

Sunlit Series

RU55-2P6VA

RU55-2P9VA

RU55-3P9VA

RO55-3P9VA

RO55-4P8VA

Model
Pixel Pitch(mm)
Resolution
Unit Size(W x H x Dmm)
Brightness(nits)
Gray Scale(Bit)
Contrast Ratio
Colour Temperature
Viewing Angle(H./V.)
Refresh Rate(Hz)
Lifetime(Hours)
Working Voltage
Power ConsumptionMax(W/m²)
Operating Temp(°C)
Humidity Range
Weight(kg)

RU55-2P6VA
P2.604(indoor)
192 x 192
500*500*88
700~900
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
7.5

RU55-2P9VA
P2.97 (indoor)
168x 168
500*500*88
700~900
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
7.5

RU55-3P9VA
P3.91 (indoor)
128 x 128/128 x 256
500*500*88/500*1000*88
700~900
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
7.5

RO55-3P9VA
P3.91 (indoor)
128 x 128/128 x 256
500*500*88/500*1000*88
5000~5500
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤800
-20 ~+50
10%~90%RH
7.5/11

RO55-4P8VA
P4.81(outdoor)
104 x 104/104 x 208
500*500*88/500*1000*88
5000~5500
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤800
-20 ~+50
10%~90%RH
7.5/11
