N Series

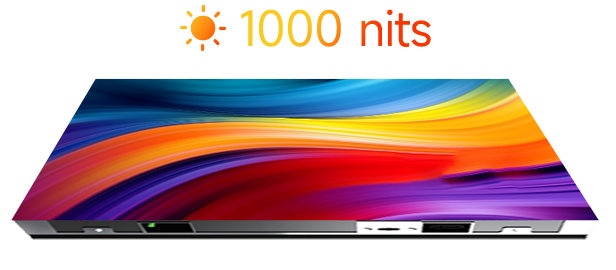

Up to 1000 nits brightness

Evolve your display with high brightness to meet changing needs.

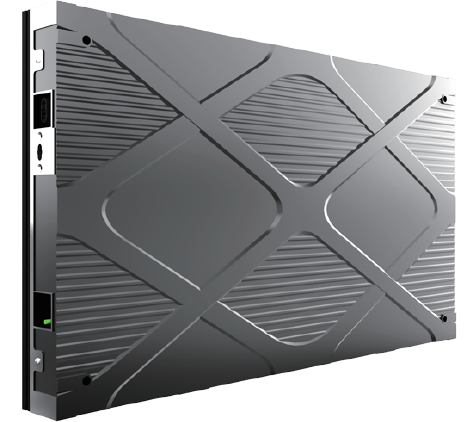

Die-casting aluminum cabinet

The cabinet is made of die-cast aluminium, providing high hardness, lightweight, excellent heat dissipation, and effective moisture and dust resistance.

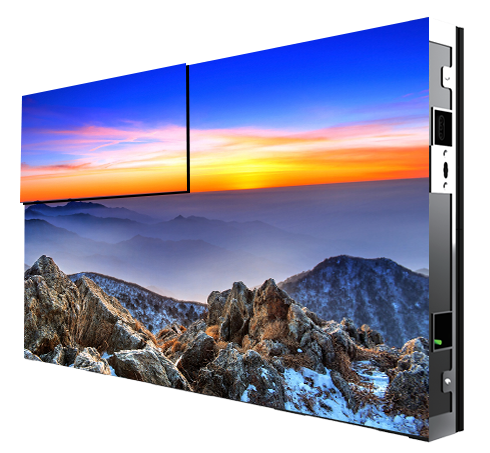

Easy installation increases efficiency

Quick locks are used inside and between the cabinets, making installation and maintenance more convenient.

Specifications

N Series

F63-18VC

Model
Pixel Pitch(mm)
Resolution
Unit Size(W x H x Dmm）
Brightness(nits)
Gray Scale(Bit)
Contrast Ratio
Colour Temperature
Viewing Angle(H./V.)
Refresh Rate(Hz)
Lifetime(Hours)
Working Voltage
Power ConsumptionMax(W/m²)
Operating Temp(°C)
Humidity Range(%RH)
Weight(kg)

F63-18VC
1.818
352*198
640*360*62mm
500~1000
14
4000：1
3200K~12000K
140°/140°
3840Hz
≥100000
AC：100V~220V，50/60Hz
≤500
-10°C~+50°C
10% ~ 85%RH
5
