Sunlit Pro Series

Sunlit Pro Series

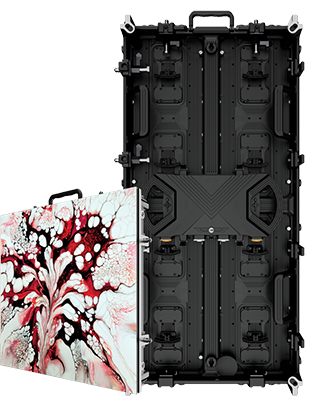

LED Rental Display

Smart lock design

The smart locks are designed to make the splicing between the cabinets more stable and robust.

Large magnetic suction design

The top and bottom of the cabinet are equipped with large magnetic pieces, which allow for automatic suction and fast positioning during assembly.

Front and rear maintenance

Support for front and rear maintenance, different maintenance methods can be selected according to different application scenarios.

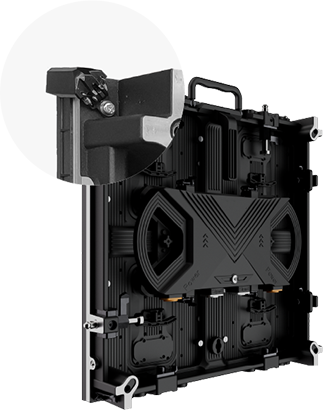

90° right angle splicing

Support 90°right-angle splicing of cabinets and easily create various column screens and right-angle screens.

Internal and external arc splicing

Customized arc lock can be selected to achieve -10° ~ +10°internal and external arc splicing.

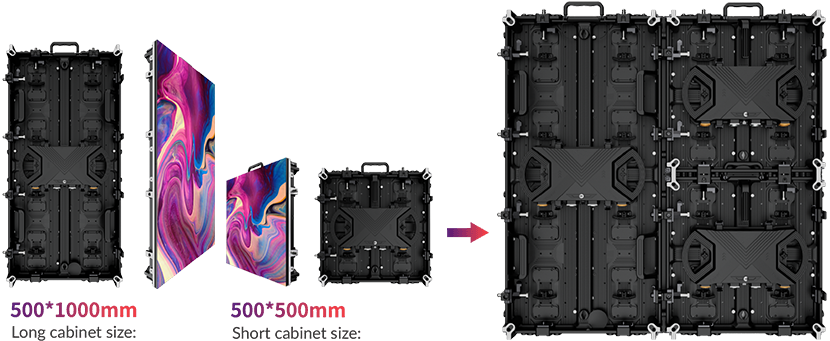

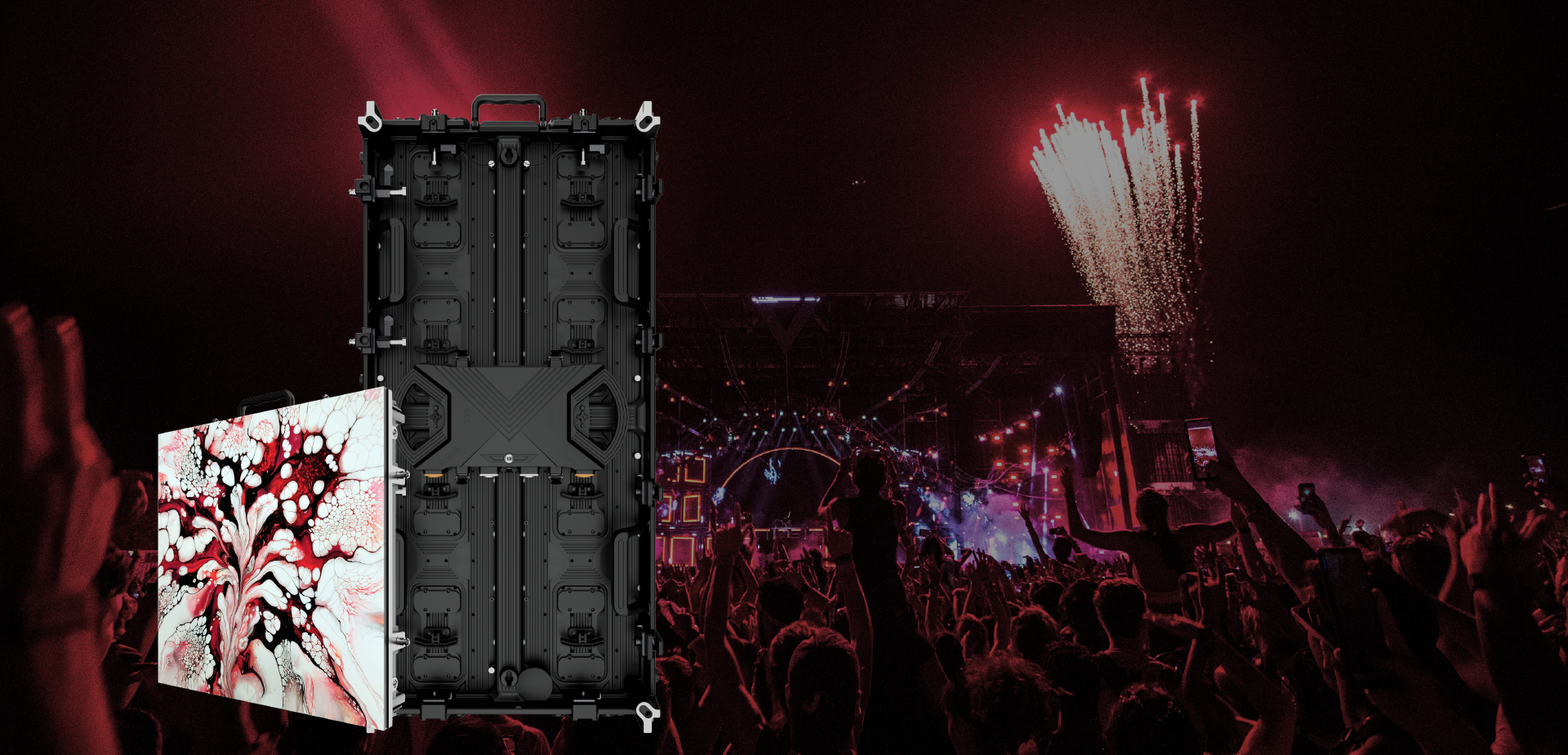

Two cabinets, any splicing

The Sunlit Pro series is available in both long and short cabinet sizes. The two cabinets can not only be used individually but can also be combined, providing the flexibility to choose different cabinets for fitting according to the needs of the scenario.

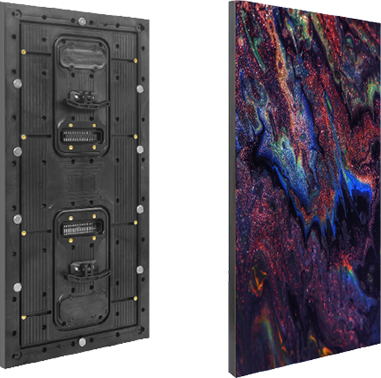

Large module design

The module size is 250*500mm, a larger size that greatly reduces screen installation and dismantling time to improve overall efficiency.

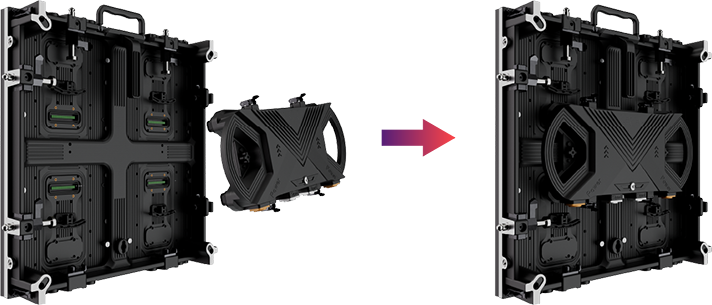

Power hox hard-connect plug-in design

Featuring a wireless hard-connect power box for a cleaner overall appearance and more efficient on-site dismantling and installation.

Corner protection design

The cabinet is protected from bumps by foldable corner protectors around the corners of the screen.

Multiple applications

Film and TV shooting & XR virtual shooting

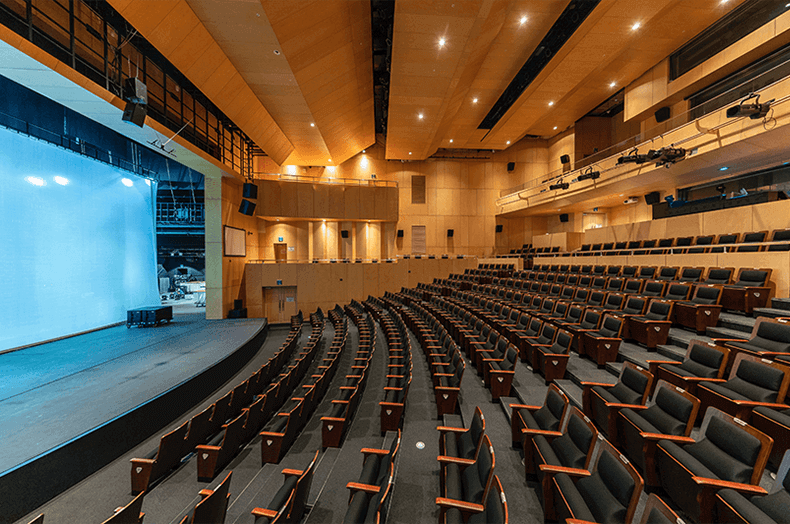

Music Hall

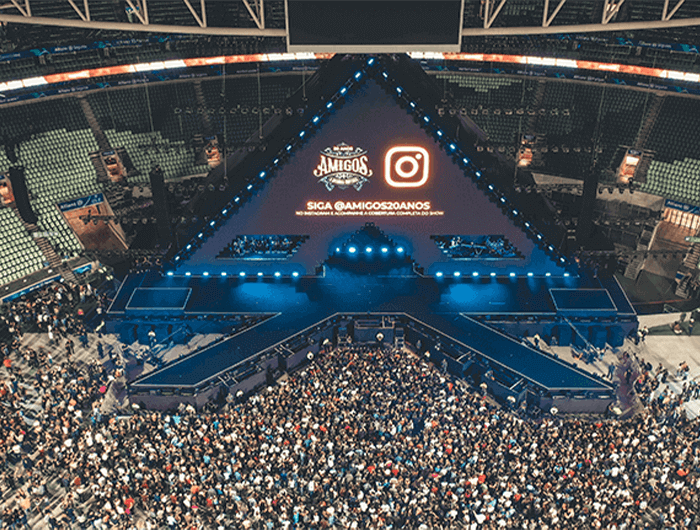

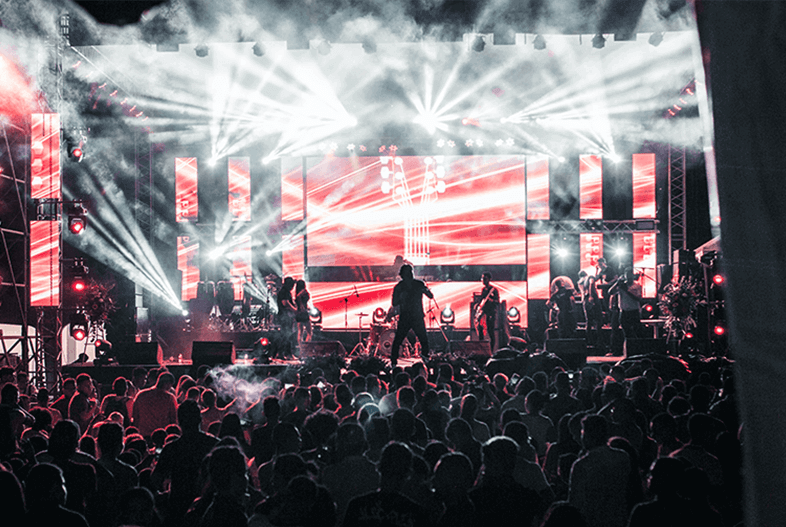

Concert

Outdoor Events

Specifications

Sunlit PRO Series

RU55-1P9VB

RU55-2P6VB

RU55-3P1VB

RU55-3P9VB

RO55-2P6VB

RO55-3P1VB

RO55-3P9VB

RO55-4P8VB

Model
Pixel Pitch(mm)
Resolution
Unit Size(W x H x Dmm)
Brightness(nits)
Gray Scale(Bit)
Contrast Ratio
Colour Temperature
Viewing Angle(H./V.)
Refresh Rate(Hz)
Lifetime(Hours)
Working Voltage
Power ConsumptionMax(W/m²)
Operating Temp(°C)
Humidity Range
Weight(kg)

RU55-1P9VB
P1.953(indoor)
256 x 256
500*500*88
700~900
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
7.8

RU55-2P6VB
P2.604(indoor)
192 x 192/384 x 384
500*500*88/500*1000*88
700~900
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
7.8/11

RU55-3P1VB
P3.125 (indoor)
160x160/160 x 320
500*500*88/500*1000*88
700~900
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
7.8/11

RU55-3P9VB
P3.91(indoor)
128 x 128/128 x 256
500*500*88/500*1000*88
700~900
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
7.8/11

RO55-2P6VB
P2.604(outdoor)
192 x 192
500*500*88
5000~5500
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤800
-20~+50
10%~90%RH
7.8

RO55-3P1VB
P3.125 (outdoor)
160 x 160
500*500*88
5000~5500
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤800
-20~+50
10%~90%RH
7.8

RO55-3P9VB
P3.91(outdoor)
128 x 128/128 x 256
500*500*88/500*1000*88
5000~5500
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤800
-20~+50
10%~90%RH
7.8/11

RO55-4P8VB
P4.81(outdoor)
104 x 104/104 x 208
500*500*88/500*1000*88
5000~5500
14
5000:1
3200K~12000K
140°/120°
3480
≥100000
AC:100V~220V,50/60Hz
≤800
-20~+50
10%~90%RH
7.8/11
